Hawk Supervisor-Fixturlaser South Africa (Pty)Ltd

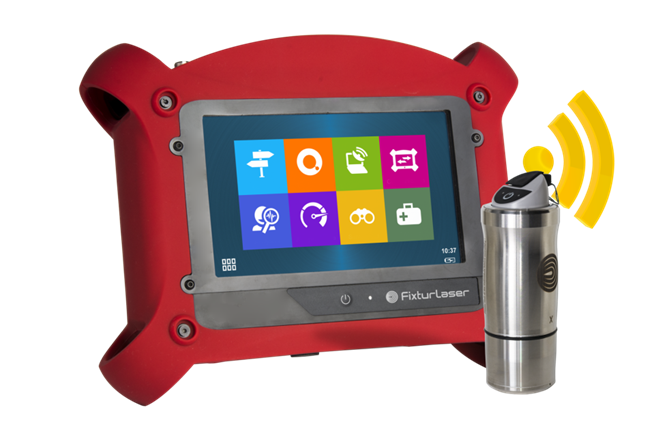

Fixturlaser Smart Machine Checker (SMC)


Fixturlaser SMC Supervisor

Automatic machinery diagnosis that actually works.


A powerful machinery health analysis tool made for mechanics, no vibration knowledge needed, giving a clear and accurate automatic diagnosis of rotating equipment.

Intuitive interface
Right/Left hand operation
7 inch touch screen
Color coded results
Wi-Fi Wireless Triaxial Sensor
On-board machinery diagnosis
Built-in strobe light, pyrometer and camera
Intrinsically Safe Available



Machinery Diagnostics

Pumps, Motors, Fans, Compressors, Gearboxes and more

The SMC Hawk gives instantaneous machinery health conditions right next to the machine.
No additional analysis software needed
Using the patented on-board machinery diagnostics compared to ISO standards.
There is no need to be a vibration specialist to take advantage of 300 engineer’s knowledge built in the SMC Hawk.
All that is needed to set-up the machine is the kW or horsepower and shaft rotational speed.
Most of the rotating equipment found in traditional industrial applications can be diagnosed with the SMC Hawk.
Any motor driving a pump, compressor, gearbox, fan, alternator, roll and shaft that are direct drive, belt or chain driven.

Diagnosis of machinery health issues such as;

bearing problems,



pump cavitation,

broken or cracked gears

resonances and more.
Know what needs attention, or what will make it to the next scheduled maintenance.

There are 3 simple steps to get the information needed in understanding the machine’s current condition.

1. Set-up the machine Template on the SMC Hawk
2. Take measurements on the machine
3. Get diagnosis from the SMC Hawk


Create the template in the SMC Hawk and go out to collect the data.
Put the wireless sensor on the bearing housings of the machine, and within minutes have the condition of the asset.

What’s Included

Full VGA 7″ color display unit with IP-65 rating
Built-in Strobe light
Built-in Camera
Built-in Pyrometer with laser targeting

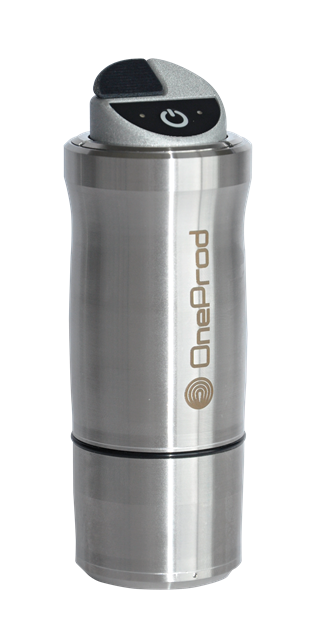

Wi-Fi Wireless Triaxial sensor
Carrying Case
Power supply to Hawk
USB Charger for Sensor
Carrying case – IP-65, high impact ABS
Mounting Pads
